OVERVIEW: The Model TB Temporary Basket Strainers can be used in steam, water, oil or gas service, and are installed between two flanges for quick protection of equipment. They can be constructed of carbon steel or stainless steel, and are used either temporarily, or where cost is of prime importance. The pipe must be disassembled to inspect, clean, or remove these strainers.
Unless otherwise specified, a 1/8" perforated 304 stainless steel screen will be supplied with 150% open area. Both 100% and 200% open area designs are also available upon request. Options are different size perforations and mesh liners. Made with 300 series stainless steel, monel, and brass. Handles are normally 3" long by 1" wide.
See the submittal sheet for additional standard technical data.

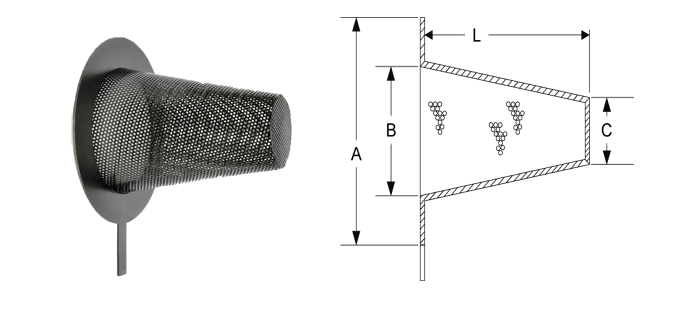

| MODEL |
SIZE
(in)
|
LENGTH
(in)
|
CLASS |
A
(in)
|
B
(in)
|
C
(in)
|
ITEM NO |
|---|---|---|---|---|---|---|---|
| TB1 | 1-1/2 | 2-7/8 | 150 | 3-1/4 | 1-1/4 | 3/4 | TB10150 |
| TB2 | 1-1/2 | 2-7/8 | 300 | 3-1/4 | 1-1/4 | 3/4 | TB20150 |
| TB3 | 1-1/2 | 2-7/8 | 600 | 3-5/8 | 1-1/4 | 3/4 | TB30150 |
| TB1 | 2 | 3-1/2 | 150 | 4 | 1-3/4 | 1 | TB10200 |
| TB2 | 2 | 3-1/2 | 300 | 4 | 1-3/4 | 1 | TB20200 |
| TB3 | 2 | 3-1/2 | 600 | 4-1/4 | 1-3/4 | 1 | TB30200 |
| TB1 | 2-1/2 | 3-7/8 | 150 | 4-3/4 | 2-1/4 | 1-1/4 | TB10250 |
| TB2 | 2-1/2 | 3-7/8 | 300 | 4-3/4 | 2-1/4 | 1-1/4 | TB20250 |
| TB3 | 2-1/2 | 3-7/8 | 600 | 5 | 2-1/4 | 1-1/4 | TB30250 |
| TB1 | 3 | 3-7/8 | 150 | 5-1/4 | 2-3/4 | 1-1/2 | TB10300 |
| TB2 | 3 | 3-7/8 | 300 | 5-1/4 | 2-3/4 | 1-1/2 | TB20300 |
| TB3 | 3 | 3-7/8 | 600 | 5-3/4 | 2-3/4 | 1-1/2 | TB30300 |
| TB1 | 4 | 5 | 150 | 6-3/4 | 3-3/4 | 2 | TB10400 |
| TB2 | 4 | 5 | 300 | 6-3/4 | 3-3/4 | 2 | TB20400 |
| TB3 | 4 | 5 | 600 | 7-1/2 | 3-3/4 | 2 | TB30400 |
| TB1 | 6 | 7-3/4 | 150 | 8-5/8 | 5-3/8 | 3 | TB10600 |
| TB2 | 6 | 7-3/4 | 300 | 8-5/8 | 5-3/8 | 3 | TB20600 |
| TB3 | 6 | 7-3/4 | 600 | 10-3/8 | 5-3/8 | 3 | TB30600 |
| TB1 | 8 | 9-3/4 | 150 | 10-7/8 | 7-3/8 | 4 | TB10800 |
| TB2 | 8 | 9-3/4 | 300 | 10-7/8 | 7-3/8 | 4 | TB20800 |
| TB3 | 8 | 9-3/4 | 600 | 12-1/2 | 7-3/8 | 4 | TB30800 |
| TB1 | 10 | 12-3/8 | 150 | 13-1/4 | 9-3/8 | 5 | TB11000 |
| TB2 | 10 | 12-3/8 | 300 | 13-1/4 | 9-3/8 | 5 | TB21000 |
| TB3 | 10 | 12-3/8 | 600 | 15-5/8 | 9-3/8 | 5 | TB31000 |
| TB1 | 12 | 14-3/4 | 150 | 16 | 11 | 6 | TB11200 |
| TB2 | 12 | 14-3/4 | 300 | 16 | 11 | 6 | TB21200 |
| TB3 | 12 | 14-3/4 | 600 | 17-7/8 | 11 | 6 | TB31200 |
| TB1 | 14 | 15-7/8 | 150 | 17-3/8 | 12-1/4 | 7 | TB11400 |
| TB2 | 14 | 15-7/8 | 300 | 17-3/8 | 12-1/4 | 7 | TB21400 |
| TB3 | 14 | 15-7/8 | 600 | 19 | 12-1/4 | 7 | TB31400 |
| TB1 | 16 | 18-3/8 | 150 | 20-1/8 | 14 | 8 | TB11600 |
| TB2 | 16 | 18-3/8 | 300 | 20-1/8 | 14 | 8 | TB21600 |
| TB3 | 16 | 18-3/8 | 600 | 21-7/8 | 14 | 8 | TB31600 |
| TB1 | 18 | 20-7/8 | 150 | 21-1/4 | 15-3/4 | 9 | TB11800 |
| TB2 | 18 | 20-7/8 | 300 | 21-1/4 | 15-3/4 | 9 | TB21800 |
| TB3 | 18 | 20-7/8 | 600 | 23-3/4 | 15-3/4 | 9 | TB31800 |
| TB1 | 20 | 23-1/2 | 150 | 23-1/2 | 17-1/2 | 10 | TB12000 |
| TB2 | 20 | 23-1/2 | 300 | 23-1/2 | 17-1/2 | 10 | TB22000 |
| TB3 | 20 | 23-1/2 | 600 | 26-5/8 | 17-1/2 | 10 | TB32000 |
| TB1 | 24 | 28-3/8 | 150 | 27-7/8 | 21-1/4 | 12 | TB12400 |
| TB2 | 24 | 28-3/8 | 300 | 27-7/8 | 21-1/4 | 12 | TB22400 |
| TB3 | 24 | 28-3/8 | 600 | 30-7/8 | 21-1/4 | 12 | TB32400 |
