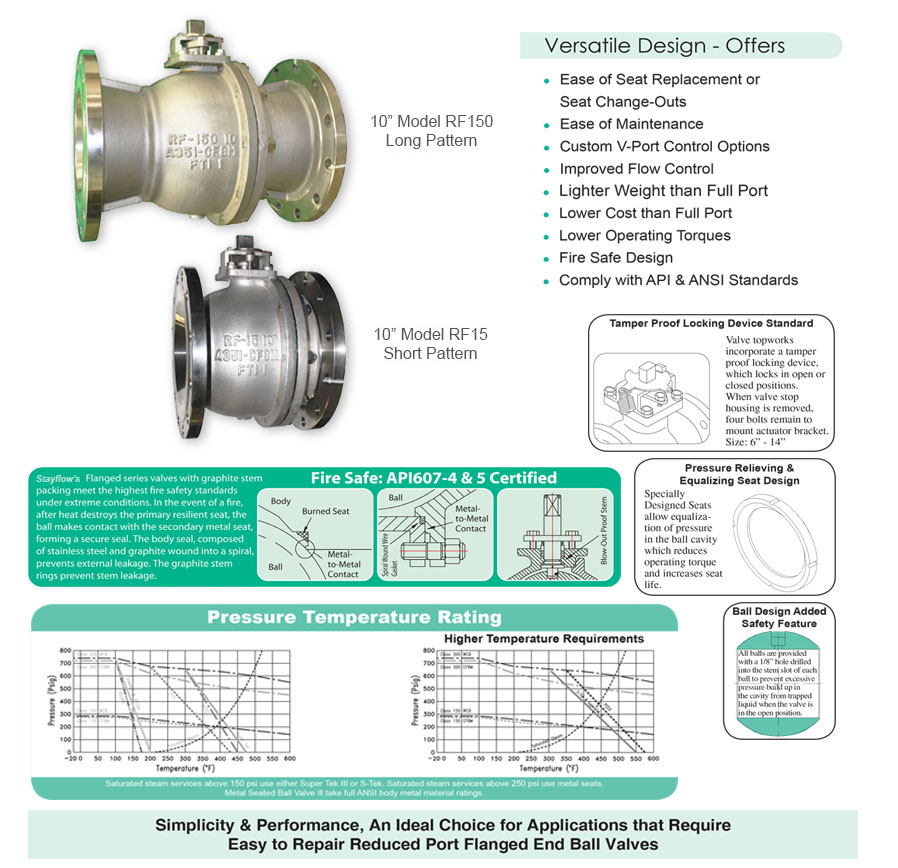

OVERVIEW: The EZ Series (RF) Ball Valves are for applications with flange ends, in sizes 3" to 12". Fire safe. Class 150 and Class 300. A short pattern body is available for tight spaces.
The EZ Series also comes prepackaged with pneumatic and electric actuators.
| CONSTRUCTION | FEATURES | ||
| • 2-Piece Body Design | • Fire Safe Certified to API 607 | ||
| • Stainless Steel or Carbon Steel (WCB) | • API 608 Certified Option | ||
| Body Material | • Vented Ball | ||
| • TFM Seat Material | • V-Port Control Option | ||
| • Testing to API 598, MSS-SP-72 | |||
| • Long Full Bore, or Short Reduced Bore Designs |
swipe to see more products
| MODEL | TYPE |
SIZE
(in)
|
LENGTH
(in)
|
ENDS | BODY MTL | CLASS | Cv |
PRESS (STEAM)
(psi)
|
PRESS (WOG)
(psi)
|
WT
(lbs)
|
ITEM NO |
|---|---|---|---|---|---|---|---|---|---|---|---|
| EZ | RF15-CS | 3" | 8 | 150# FLANGES | CARBON STEEL | 150 | 340 | 285 | 150 | 33 | VBALL-F-EZ-RF15CS0300 |
| EZ | RF15-CS | 4" | 9 | 150# FLANGES | CARBON STEEL | 150 | 800 | 285 | 150 | 53.5 | VBALL-F-EZ-RF15CS0400 |
| EZ | RF15-CS | 6" | 10.5 | 150# FLANGES | CARBON STEEL | 150 | 1090 | 285 | 150 | 82.5 | VBALL-F-EZ-RF15CS0600 |
| EZ | RF15-CS | 8" | 11.5 | 150# FLANGES | CARBON STEEL | 150 | 2300 | 285 | 150 | 186 | VBALL-F-EZ-RF15CS0800 |
| EZ | RF15-CS | 10" | 13 | 150# FLANGES | CARBON STEEL | 150 | 4000 | 285 | 150 | 279.5 | VBALL-F-EZ-RF15CS1000 |
| EZ | RF15-CS | 12" | 14 | 150# FLANGES | CARBON STEEL | 150 | 7700 | 285 | 150 | 426.5 | VBALL-F-EZ-RF15CS1200 |
| EZ | RF15-SS | 3" | 8 | 150# FLANGES | STAINLESS STEEL | 150 | 340 | 285 | 150 | 33 | VBALL-F-EZ-RF15SS0300 |
| EZ | RF15-SS | 4" | 9 | 150# FLANGES | STAINLESS STEEL | 150 | 800 | 285 | 150 | 53.5 | VBALL-F-EZ-RF15SS0400 |
| EZ | RF15-SS | 6" | 10.5 | 150# FLANGES | STAINLESS STEEL | 150 | 1090 | 285 | 150 | 82.5 | VBALL-F-EZ-RF15SS0600 |
| EZ | RF15-SS | 8" | 11.5 | 150# FLANGES | STAINLESS STEEL | 150 | 2300 | 285 | 150 | 186 | VBALL-F-EZ-RF15SS0800 |
| EZ | RF15-SS | 10" | 13 | 150# FLANGES | STAINLESS STEEL | 150 | 4000 | 285 | 150 | 279.5 | VBALL-F-EZ-RF15SS1000 |
| EZ | RF15-SS | 12" | 14 | 150# FLANGES | STAINLESS STEEL | 150 | 7700 | 285 | 150 | 426.5 | VBALL-F-EZ-RF15SS1200 |
| EZ | RF30-CS | 3" | 11.14 | 300# FLANGES | STAINLESS STEEL | 300 | 340 | 285 | 150 | 53 | VBALL-F-EZ-RF30CS0300 |
| EZ | RF30-CS | 4" | 12 | 300# FLANGES | STAINLESS STEEL | 300 | 800 | 285 | 150 | 83 | VBALL-F-EZ-RF30CS0400 |
| EZ | RF30-CS | 6" | 15.87 | 300# FLANGES | STAINLESS STEEL | 300 | 1090 | 285 | 150 | 140 | VBALL-F-EZ-RF30CS0600 |
| EZ | RF30-CS | 8" | 300# FLANGES | STAINLESS STEEL | 300 | - | 285 | 150 | 0 | VBALL-F-EZ-RF30CS0800 | |
| EZ | RF30-SS | 3" | 11.4 | 300# FLANGES | STAINLESS STEEL | 300 | 340 | 285 | 150 | 53 | VBALL-F-EZ-RF30SS0300 |
| EZ | RF30-SS | 4" | 12 | 300# FLANGES | STAINLESS STEEL | 300 | 800 | 285 | 150 | 83 | VBALL-F-EZ-RF30SS0400 |
| EZ | RF30-SS | 6" | 15.87 | 300# FLANGES | STAINLESS STEEL | 300 | 1090 | 285 | 150 | 140 | VBALL-F-EZ-RF30SS0600 |
| EZ | RF30-SS | 8" | 300# FLANGES | STAINLESS STEEL | 300 | - | 285 | 150 | - | VBALL-F-EZ-RF30SS0800 |
